Detail Specification:

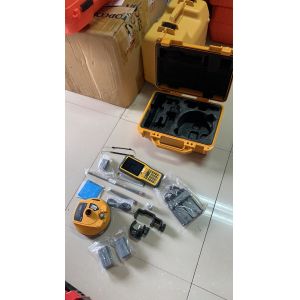

New Brand Hi-target V90 PLUS GNSS RTK SYSTEM with Hight Quality

Satellite Signals Tracked Simultaneously
220 Channels
GPS……….. Simultaneous L1C/A, L2C, L2E, L5
GLONASS……………..Simultaneous L1C/A, L1P, L2C/A (GLONASS M only), L2P
SBAS……………………. Simultaneous L1 C/A, L5
Galileo………………... Simultaneous L1 BOC, E5A, E5B, E5AltBOC
BDS………………..…….……………………………. B1, B2
QZSS…………………….. L1 C/A, L1 SAIF, L2C, L5

POSITIONING PERFORMANCE

Static and Fast Static GNSS Surveying
Horizontal……………………2.5mm+0.5ppm RMS
Vertical…………………………. 5mm+0.5ppm RMS

Post Processing Kinematic (PPK / Stop & Go) GNSS Surveying
Horizontal……………………….. 1cm+1ppm RMS
Vertical………………………… 2.5cm+1ppm RMS
Initialization time……….Typically 10 minutes for base while 5 minutes for rover
Initialization reliability……Typically > 99.9%

Real Time Kinematic (RTK) Surveying
Single Baseline
Horizontal……………………….. 8mm+1ppm RMS
Vertical…………………………. 15mm+1ppm RMS

Network RTK
Horizontal……………………….. 8mm+0.5ppm RMS
Vertical………………………….. 15mm+0.5ppm RMS
Initialization time……..…Typically < 8seconds
Initialization reliability…….Typically > 99.9%

Code Differential GNSS Positioning
Horizontal………………………. 25cm+1ppm RMS
Vertical…………………………… 50cm+1ppm RMS
SBAS ……… 0.50m Horizontal, 0.85m Vertical

HARDWARE
Physical
Dimensions (W x H)…….153mm x 83mm (6.02inch x 3.27inch)
Weight………950g (2.09lb) without internal battery
Operating temperature………. -40℃to +65℃ (-40℉ to +149℉)
Storage temperature…………. -40℃ to +75℃(-40℉ to +167℉)
Humidity………………………. 100%, considering
Water/dustproof……………….. IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft).
Shock and vibration……………Designed to survive a 3m(9.84ft) natural fall onto concrete.

Electrical
Power 6V to 28V DC external power input
Power consumption ≤3.5W
Automatic switching between internal power and external power
Rechargeable, removable 7.4V, 5000mAh Lithium-ion battery in internal battery compartment

Internal Battery Life
Static 12hours
RTK rover (UHF/GPRS/3G) 8-10 hours
RTK base 8 hours

I/O Interface
1 xBluetooth, NFC
1 x standard USB2.0 port
1 x TNC antenna connector
1 x RS232 serial port
1 x DC power input (5-pin)

Tilt Survey System
Electronic Bubble

COMMUNICATION
Network Communication
Fully integrated, fully sealed internal WCDMA, compatible with GPRS, GSM
Wifi frequency is 2.4G, supports 802.11b/g/n protocol
Network RTK (via CORS) range20-50km

HI-TARGET Internal UHF Radio(Standard)
Frequency… 450~470MHz with 116 channels
Transmitting power…0.5W, 1W, 2W adjustable
Transmitting speed……….9.6Kbps, 19.2Kbps
Working range………….3~5km typical, 8~10kmoptimal

Pacific Crest XDL Micro Internal UHF Radio
Frequency…………………………….403~473MHz
Transmitting power……………… 0.5W, 2W adjustable
Transmitting speed…………….. Up to 19.2Kbps
Support most of radio communication protocol
Working range……………………… 3~5km typical, 8~10km optimal

HI-TARGET External UHF Radio (Standard)
Frequency………… 460MHz with 116 channels
Transmitting power……. 5W, 10W, 20W, 30W adjustable
Transmitting speed…………… Up to 19.2Kbps
Working range…………………. 8~10km typical, 15~20km optimal

Pacific Crest ADL Vantage Pro External UHF Radio
Frequency…. 390~430MHz or 430~470MHz
Transmitting power….. 4W to 35W adjustable
Transmitting speed…………….. Up to 19.2Kbps
Support most of radio communication protocol
Working range…. 8~10km typical, 15~20km optimal

SYSTEM CONFIGURATION
System
Data storage…………………16GB Internal storage (Support up to 32GB external SD card)
Record GNS and RINEX format simultaneously

Data Formats
1Hz positioning output, up to 20Hz
CMR: CMR, CMR+, sCMRx input and output
RTCM: RTCM 2.1, 2.3, 3.0, 3.1, 3.2 input and output
Navigation outputs ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS
Navigation outputs binary: GSOF
